| Dimensions (Overall) | 433 (W) × 614 (D) × 437 (H) | mm |

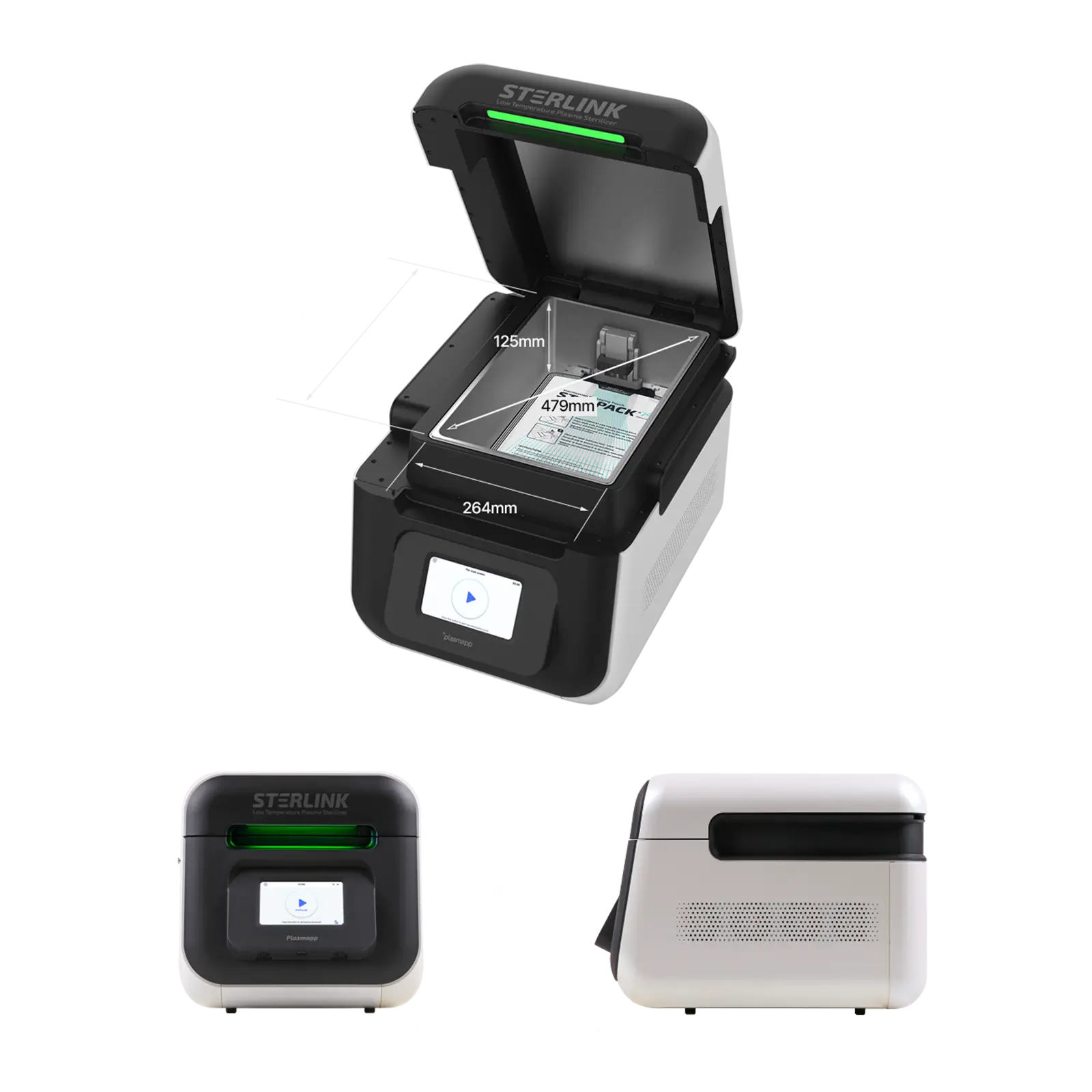

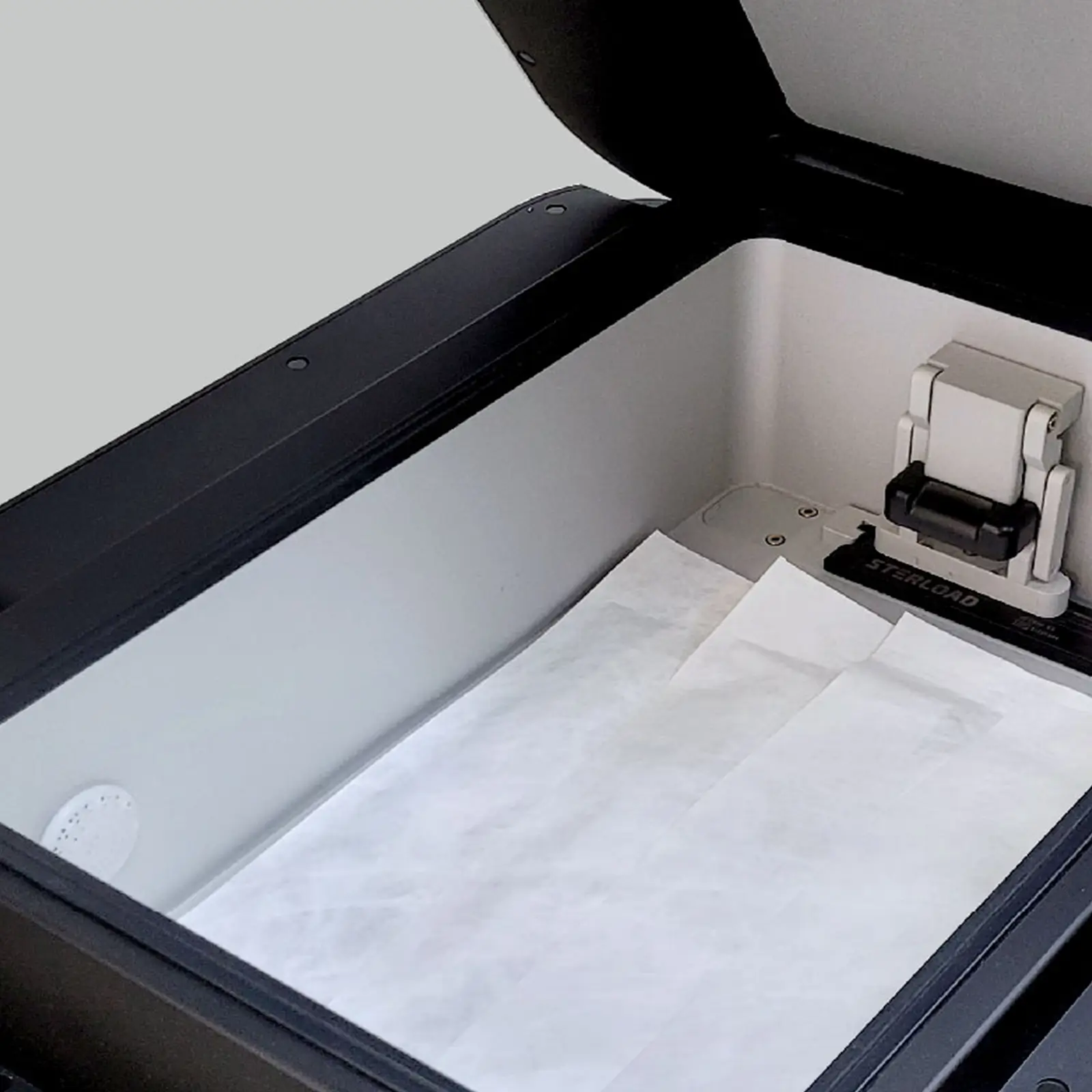

| Dimensions (Chamber)
| 264 (W) × 410 (D) × 125 (H) | mm |
| Chamber Volume
| 14 | l |
| Chamber Diagonal Length
| 470 | mm |
| Product Weight
| 58 | kg |
| Sterilization Process
| (Pouch Mode): 7 | min |
| (Pouch Plus Mode): 14 |
| (Chamber Mode): 36 |
| Sterility Assurance
| SAL 10⁻⁶ validated for medical device sterilization safety | - |
| Safety Devices | Physical: Automatic door status check and vacuum lock during cycle
| - |
| Electrical: Fuse installed for overcurrent protection |
| Vacuum System | Built-in vacuum pump | - |
| Electrical Characteristics | Rated Voltage: 220 / 100 ~ 120 | VAC |
| Rated Frequency: 50 / 60 | Hz |
| Power Consumption: 1.5 | kW |
| Fuse: 250V, 15A / 125V, 15A | - |
| Process Variables | Sterilization Temperature: 30 ~ 60 | ℃ |
| Pressure before Sterilant Injection ≤ 3 | Torr |
| Sterilant Diffusion Pressure: 20 ~ 80 | Torr |
| Sterilant | Hydrogen Peroxide (H₂O₂ 58.0% ~ 59.5%) | - |
| Lumen / Load Claim | Single-channel Ø0.7 × 500 mm Stainless steel | - |
| Ø2.0 × 1,500 mm Stainless steel |
| Ø1.0 × 2,000 mm PTFE |
