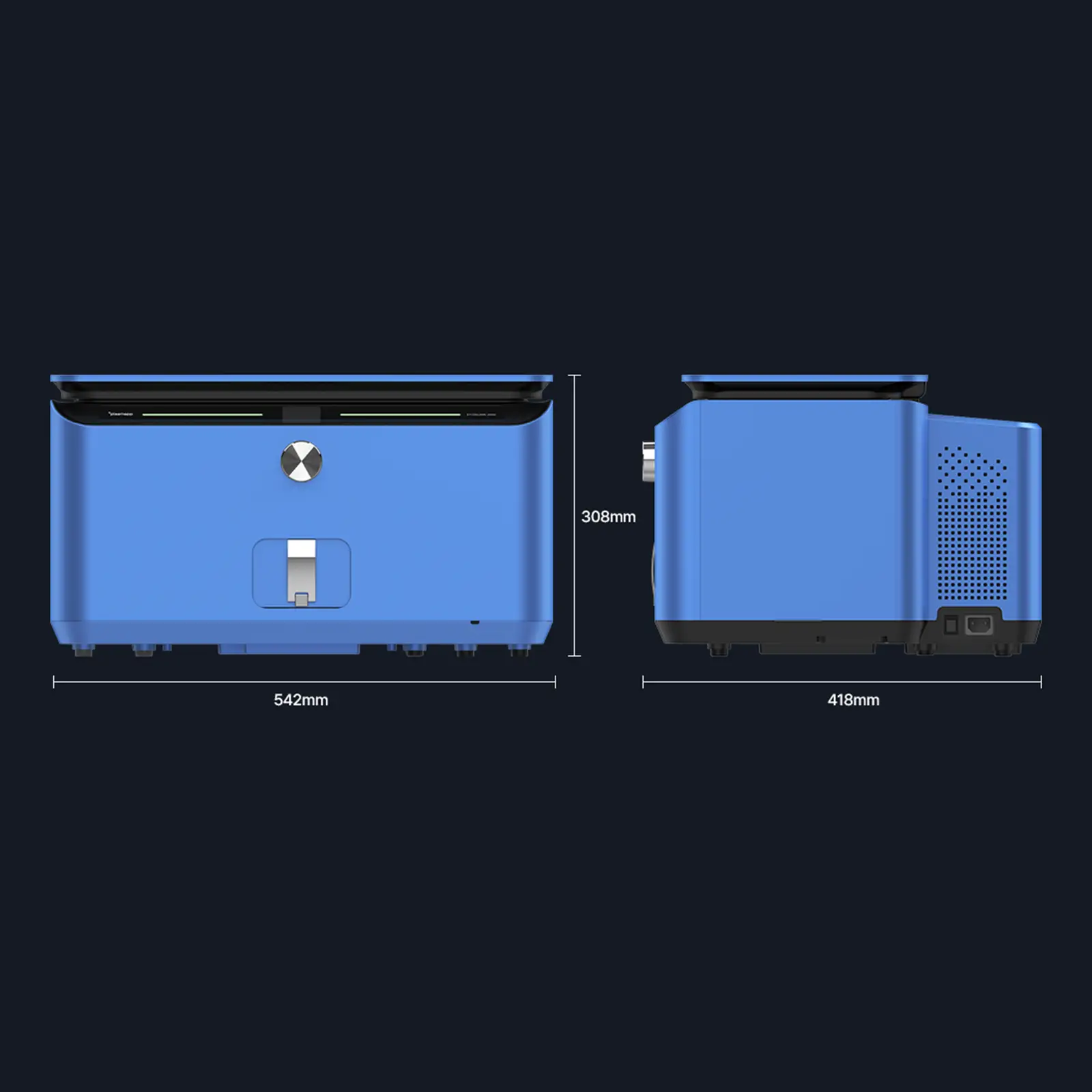

| Dimensions (Overall) | 542 (W) × 418 (D) × 308 (H)) | mm |

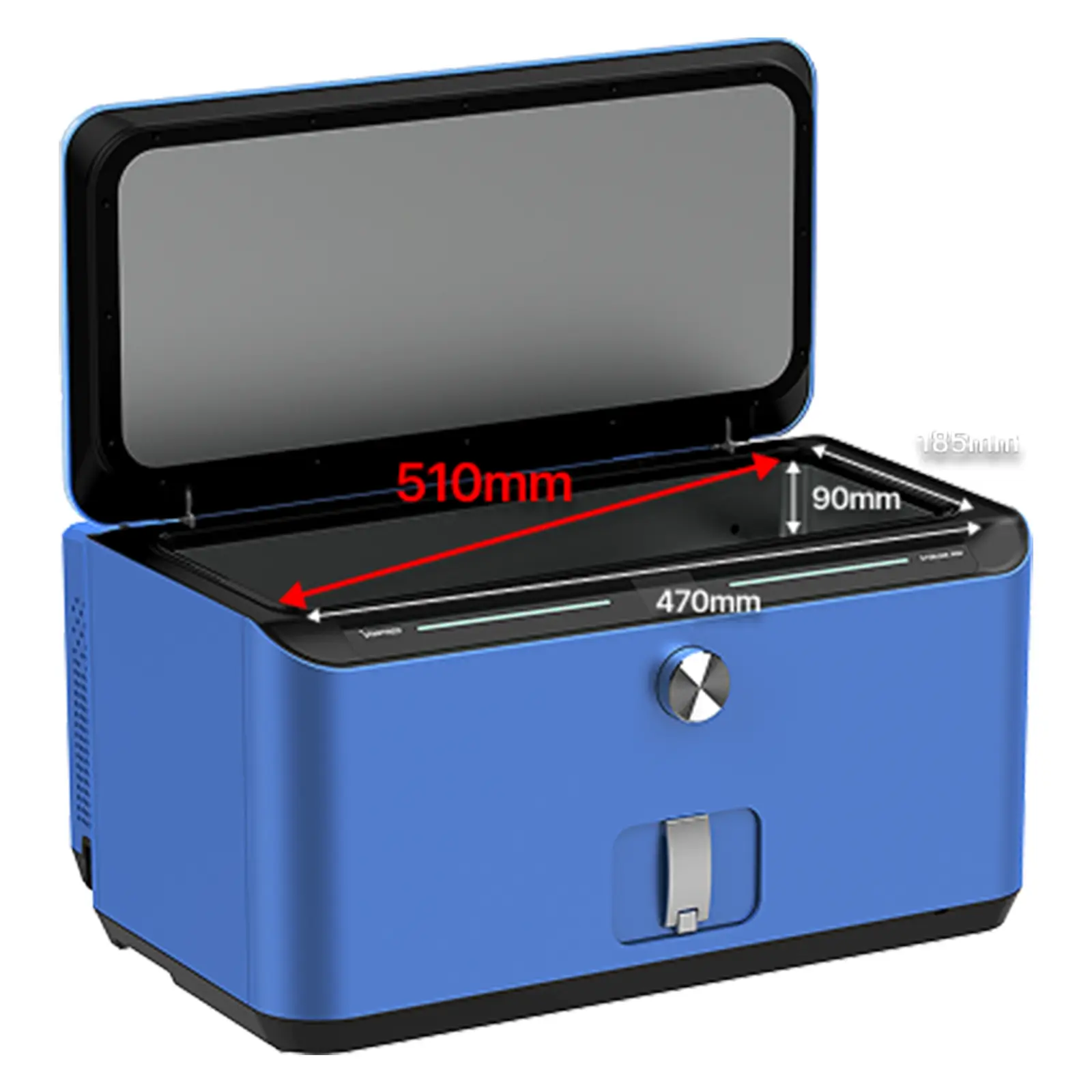

| Chamber Capacity | 470 (W) × 185 (D) × 90 (H), 8 | mm |
| Chamber Diagonal Length | 510 | mm |
| Product Weight | 30 | mm |
| Sterilization Process | Sterilization Time (Standard Mode): 18 ±2 | min |
| Sterilization Time (Advanced Mode): 31 ±2 | min |
| Sterility Assurance | SAL 10⁻⁶ validated for medical device sterilization safety | - |
| Physical: Door sensor and vacuum-based door locking prevention | - |
| Vacuum System | Oil-free vacuum pump | - |
| Operating Pressure | 30 ~ 55 | Torr |
| Electrical Characteristics | Rated Voltage: 220 / 100 ~ 120 | VAC |
| Rated Frequency: 50 / 60 | Hz |
| Power Consumption: 1.7 | kW |
| Fuse: 250V, 15A / 125V, 15A | - |
| Process Variables |
| Sterilization Temperature: 30 ~ 60 | ℃ |
| Pressure before Sterilant Injection ≤ 30 | Torr |
| Sterilant Diffusion Pressure: 25 ~ 80 | Torr |
| Sterilant | Hydrogen Peroxide (H₂O₂ 58.0% ~ 59.5%) | - |
| Single-channel Lumen Test | Ø0.7 ×500 mm Stainless steel, 3EA | - |
| Vacuum System | Oil-free vacuum pump | - |
